Replacement Parts For Model 7545

Product Image
Replacement Parts For Model 7545


Image Parts Breakdown Part # Description Qty Price

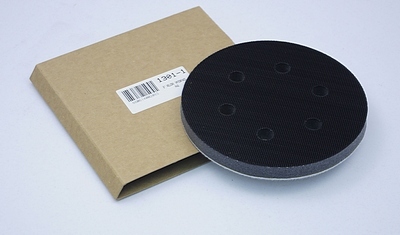

View Image Download File 1301-1 6" VELCRO INTERFACE PAD $12.53
Download File 1303-1SS S.S. CWT. SCREW SET (2) -7544 $1.09
Download File 1304C WATER-FLOW CONTROL COMP. $16.56
Download File 1311-1 HOUSING CONNECTOR TUBE 7544 $1.68
Download File 1313C WATER HOSE COUPLING COMP $24.02
Download File 1314-6 DRIVE HEAD-CWT GASKET 7544 $2.21
Download File 1314-7P COUNTERWEIGHT 7545 $16.16
Download File 1314R COUNTERWEIGHT SEAL RING 7544/7 $2.50
Download File 1315-7 MOTOR HOUSING 7544 $49.44
Download File 1316 WATER BLOCK-7544 $5.35
Download File 1317 WATER BLOCK O-RING (7544) $1.09
Download File 1318 7544 WATER BLOCK SCREW SET (2) $1.18
Download File 1319-8 CRANK & DRIVEHEAD 3570-3970 $50.89
View Image Download File 1320 SPINDLE LOCK RING $1.18
View Image Download File 1320-1 HUB LOCK RING $1.18
View Image Download File 1321-CW BEARING PLATE WASHER ONLY $1.96
Download File 1323-2S MOTOR VANE SET (5)-3500 SERIES $9.39
Download File 1324-5 ROTOR MODEL 3560-3960 $21.76
Download File 1325-4 MOTOR CYLINDER MODEL 3500-3950 $30.44
Download File 1325-6 CYLINDER ALIGNMENT KEY $1.09
Download File 1328-6 RED CAP-MODEL 3560-3960 $22.57
Download File 1329 TRIGGER $13.25
Download File 1333 AIR VALVE SPRING $1.75
Download File 1336-1 VALVE PLUNGER $5.11
Download File 1336-G VALVE PLUNGER GUIDE $4.58
View Image Download File 1342-1 BEARING SPACER 3500 SERIES $0.87
Download File 1343SS S.S.HOUSING SCREW SET(4) $2.32
Download File 1344-4 DRIVE HEAD MODEL 7544 $43.60
Download File 1345-8 WATER SEAL RING MODEL 7544 $10.19
Download File 1345-8S WATER SEAL RING SCREW SET(4) $1.46
Download File 1345-PR PAD RELEASE ASSY-7544 $5.69
Download File 1345-PWR SHROUD MODEL 7545 $29.05
Download File 1345SS S.S.SHROUD SUPPORT SCREW SET(3 $1.75
Download File 1352-1P MUFFLER MODEL 3560 $12.38
Download File 1363-1 WATER HOSE ASSY.CP. -7044/7544 $46.72
Download File 1366 VALVE SEAL $1.46
View Image Download File 1712-1 LOWER SPINDLE BEARING $23.65
Download File 1712-2 UPPER SPINDLE BEARING $23.65
Download File 1810-1 MOTOR BEARING 3500/3560 $13.47
View Image Download File 1820 WOODRUFF KEY $0.80
Download File 1821-F BEARING PLATE ONLY $16.38
Download File 1821-G LOWER BEARING PLATE-7544 $21.76
Download File 1822 ROTOR RETAINER CLIP $0.96
Download File 1830S TRIGGER SCREW SET $1.61
Download File 1937-3 AIR CONTROL -3500/3560/3570 $6.20
Download File 1937-S AIR CONTROL VALVE SET SCREW $1.09
