Replacement Parts For Model 2011, 2023, 2024, 2025, 8623, 8624, 8625

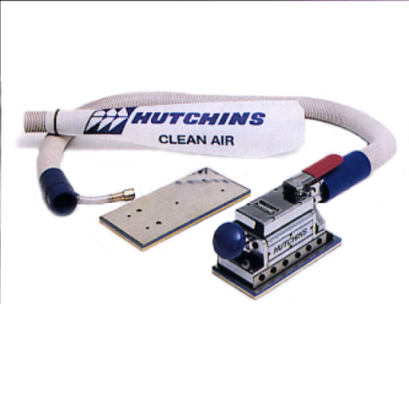

Product Image
Replacement Parts For Model 2011, 2023, 2024, 2025, 8623, 8624, 8625


Image Parts Breakdown Part # Description Qty Price
Download File 1204-2 DRIVE SHOE (MINI) $49.13
Download File 1207-1S WARE STRIP SET (MINI) (2) $12.53
Download File 1209-2 IDLER GEAR SHAFT COMP (MINI) $13.97
Download File 1210-2 TIMING DRIVE SHAFT COMP (MINI) $13.97
Download File 1211-1 PISTON (MINI) $33.54
Download File 1211-C PISTON COUNTERWEIGHT SET (2) $7.00
Download File 1211G PISTON COUNTERWEIGHT GUIDE $8.58
Download File 1212-1 PISTON RING SET (MINI) $9.39
Download File 1214-2 VALVE BODY PLATE (MINI) $16.38
Download File 1215-3 MOTOR BLOCK-BARE (MINI) $105.30
Download File 1215S SIDE PLATE COVER SET W/SCREWS $10.19
Download File 1216 SIDE PLATE SCREW SET (8) $1.91
Download File 1217-1 FRONT END PLATE (MINI) $35.80
Download File 1218-1 REAR END PLATE (MINI) $27.29
Download File 1219-1 REAR END PLATE (MINI-MOM) $31.15
Download File 1220-2 END PLATE GASKET SET (2) MINI $3.95
Download File 1221-1 TIMING SEC.MOUNT SCREW $0.60
Download File 1221S END PLATE SCREW SET (8) $4.01
Download File 1224-2 DUST PICK-UP ASSY (MINI) $17.98
Download File 1224-3 DUST SEAL O RING SET (MINI) $3.50
Download File 1225-1 TIMING PLATE (MINI) $9.39
Download File 1227 TIMING GEAR $3.14
Download File 1228S TIMING SECTOR SET $10.32
Download File 1232-2 MINI CAP GASKET $2.91
Download File 1233-3 STRAIGHTLINE CAP-BARE (MINI) $38.93
Download File 1234-2 HANDLE SCREW SET(MINI) $2.50
Download File 1235-1 SIDE RAIL SET (MINI) $11.72
Download File 1236S SIDE RAIL SCREW SET (12) $5.60
Download File 1240 BRONZE BUSHING $2.75
Download File 1241-1 LOWER CWT GUIDE SET $10.19
Download File 1242-2 COUNTERWEIGHT BAR MINI $38.65
Download File 1244 TIMING STUD $2.32
Download File 1246-1 WARE PLATE (MINI) $10.19
Download File 1252 TIMING SHAFT ROLL PIN $0.80
Download File 1257-1 PAD SHOE SCREW SET (5) (MINI) $1.61
Download File 1329-1 TRIGGER MINI AND 8620 $13.25
Download File 1332 SPEED CONTROL VALVE $5.84
Download File 1333-1 AIR VALVE SPRING $1.96
Download File 1334 AIR VALVE PLUG $1.61
Download File 1335 VALVE BLOCK BARE $33.54
Download File 1335-2 VALVE BLOCK GASKET $2.06
Download File 1335-5 AIR VALVE BLOCK-BARE $37.13
Download File 1335-6C VA/DF CAVITY CLEANING TOOL $6.20
Download File 1336 VALVE PLUNGER-2 PC castING $4.64
Download File 1336-1 VALVE PLUNGER $5.11
Download File 1336-G VALVE PLUNGER GUIDE $4.58
Download File 1337-1S VALVE BLOCK SCREW SET $2.85
Download File 1338 AIR INLET PIPE $3.14
Download File 1340 RUBBER HOSE CONNECTOR $7.43
View Image Download File 1350-4 DISPOSABLE DUST BAG COMP. $23.31
View Image Download File 1352 MUFFLER MODEL 4500/4560 $12.89
Download File 1352-1 EXHAUST TUBE (4500) $1.96
Download File 1355-3 EXHAUST HOSE COUPLING-1/4"(ID) $11.88
Download File 1361 AIR INLET HOSE ASSY-8650 $16.51
Download File 1362 EXHAUST HOSE CPLNG-1-1/2"-BL $9.32
View Image Download File 1816 BALL KNOB (BLACK) $6.63
Download File 1816-B BALL KNOB (BLUE) $6.63
Download File 1830S TRIGGER SCREW SET $1.61
View Image Download File 1833 AIR VALVE SPRING $1.75
View Image Download File 1838-1 STEEL HANDLE $8.27
Download File 1840-1 HANDLE GRIP (BLUE) $3.95
View Image Download File 1841-1 AIR INLET FITTING $3.50
View Image Download File 5862 COAXIAL HOSE CONVERSION $72.15
