Products | Replacement Parts | Model 7044 / 7044-6

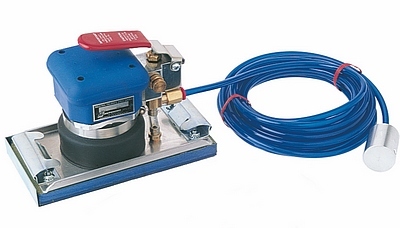

Replacement Parts For Model 7044 / 7044-6

Product Image
Replacement Parts For Model 7044 / 7044-6


Image Parts Breakdown Part # Description Qty Price

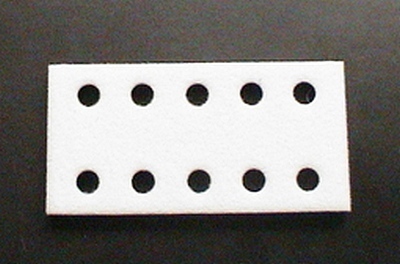

View Image Download File 1301 3-2/3 X 7 VELCRO INTERFACE PAD $12.53
View Image Download File 1301-1 6" VELCRO INTERFACE PAD $12.53
Download File 1303S COUNTER WEIGHT SCREW SET $0.80
Download File 1304 WATER FLOW CONTROL $5.11
Download File 1304C WATER-FLOW CONTROL COMP. $16.56
Download File 1305 TENSION SPRING $1.75
Download File 1306 CONTROL VALVE HOUSING $6.79
Download File 1307 E CLIP RETAINER $0.44
Download File 1310 HOUSING SIPHON CONNECTOR $10.84
Download File 1311 BASE HOUSING CONNECTOR TUBE $1.61
Download File 1312 BASE SIPHON FITTING $2.75
Download File 1313 WATER HOSE COUPLING $12.38
Download File 1313-W NYLON SEAL $0.80
Download File 1314-1 COUNTERWEIGHT-7004 & 7044 $12.53
Download File 1315-3 MOTOR HOUSING (7044) $32.70
Download File 1319-1 CRANK & DRIVE HEAD ASSY-4500 $46.72
View Image Download File 1323S MOTOR VANES(SET-6)-4500 SERIES $7.02
Download File 1324 MOTOR ROTOR 4500/4950 $21.76
View Image Download File 1325 MOTOR CYLINDER-4500 SERIES $29.55
Download File 1328-1 BOOT HOUSING GASKET $1.61
Download File 1329 TRIGGER $13.25
Download File 1331-1S MOTOR HOUSING SCREW SET $2.85
Download File 1336-1 VALVE PLUNGER $5.11
Download File 1336-G VALVE PLUNGER GUIDE $4.58
Download File 1342 BEARING SPACER-4500 $0.80
View Image Download File 1344 DRIVE HEAD $40.47
Download File 1344-1 BASE ATTACHING BOLT $1.00
Download File 1345-3 VA ADAPTOR COLLOR COMP 4906 $6.88
Download File 1352-A MUFFLER & SCREW $13.97
Download File 1363-1 WATER HOSE ASSY.CP. -7044/7544 $46.72
Download File 1366 VALVE SEAL $1.46
Download File 1384-1 BOOT RETAINING RING $3.06
Download File 1384-W RUBBER BOOT WATER SANDER $14.85
View Image Download File 1712 HEAD BEARING $23.80
Download File 1803-A UPPER BEARING RETAINER SCREW $0.36
Download File 1807 WASHER $0.36
View Image Download File 1810 BEARING $13.69
Download File 1820-A WOODRUFF KEY $0.80
View Image Download File 1821-C BEARING PLATE W/ WARE PLATE $16.90
View Image Download File 1821-CW BEARING PLATE WASHER $2.06
Download File 1822 ROTOR RETAINER CLIP $0.96
Download File 1828 ALLEN SET SCREW $0.80
Download File 1828-1 1/8 " BALL BEARING $0.44
Download File 1830S TRIGGER SCREW SET $1.61
View Image Download File 1833 AIR VALVE SPRING $1.75
Download File 1846 CRANK SCREW & WASHER $0.80
Download File 1847 SPRING WASHER $0.66
View Image Download File 1934S CLAMP SCREW SET $0.96
View Image Download File 1935 HOLD DOWN CLAMP $2.11
Download File 1937-1 AIR CONTROL FOR 7044 $6.20

Additional Pictures
