Replacement Parts For Model 8600, 8603, 8604, 8605, 8606, & 8608

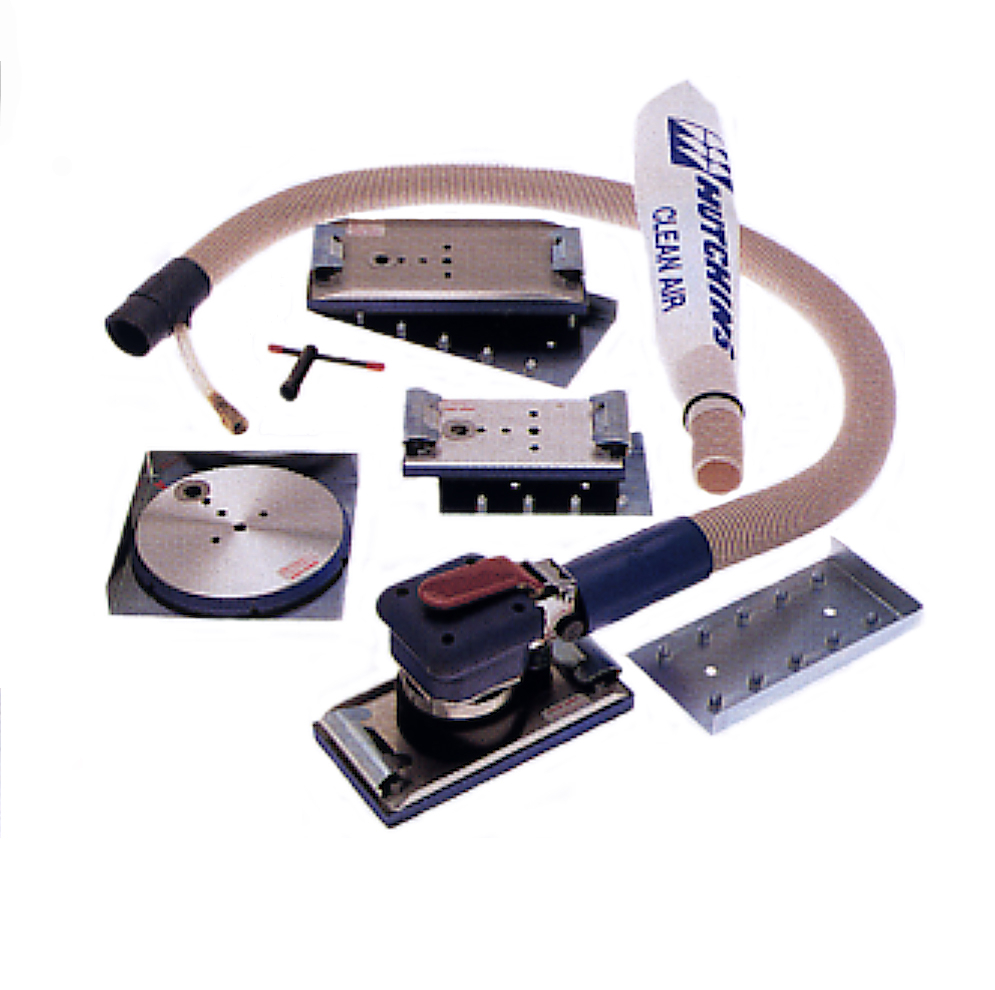

Product Image
Replacement Parts For Model 8600, 8603, 8604, 8605, 8606, & 8608


Image Parts Breakdown Part # Description Qty Price
Download File 1303S COUNTER WEIGHT SCREW SET $0.86
Download File 1314-1 COUNTERWEIGHT-7004 & 7044 $13.42
Download File 1315-1 MOTOR HOUSING (7003; 4; 5) $35.03
Download File 1319-1 CRANK & DRIVE HEAD ASSY-4500 $50.04
View Image Download File 1323S MOTOR VANES(SET-6)-4500 SERIES $7.52
Download File 1324 MOTOR ROTOR 4500/4950 $23.31
View Image Download File 1325 MOTOR CYLINDER-4500 SERIES $31.65
Download File 1328 CAP (BLUE) $24.26
Download File 1328-1 BOOT HOUSING GASKET $1.72
Download File 1329 TRIGGER $14.19
Download File 1331-1S MOTOR HOUSING SCREW SET $3.05
Download File 1332 SPEED CONTROL VALVE $6.25
Download File 1333-1 AIR VALVE SPRING $2.10
Download File 1335-2 VALVE BLOCK GASKET $2.20
Download File 1335-5 AIR VALVE BLOCK-BARE $39.77
Download File 1335-6C VA/DF CAVITY CLEANING TOOL $6.64
Download File 1336-1 VALVE PLUNGER $5.48
Download File 1336-G VALVE PLUNGER GUIDE $4.91
Download File 1337S VALVE BLOCK SCREW SET $3.05
Download File 1338 AIR INLET PIPE $3.37
Download File 1340 RUBBER HOSE CONNECTOR $7.96
Download File 1342 BEARING SPACER-4500 $0.86
View Image Download File 1344 DRIVE HEAD $43.34
Download File 1344-1 BASE ATTACHING BOLT $1.07
Download File 1344-2 ATTACHING BOLT WRENCH $4.62
Download File 1345-3 VA ADAPTOR COLLOR COMP 4906 $7.36
Download File 1354-2 VACUUM TUBE $4.62
Download File 1354-3 VACUUM SLIDE PICK-UP $2.49
Download File 1354-4 VACUUM SLIDE SPRING $3.75
Download File 1355-3 EXHAUST HOSE COUPLING-1/4"(ID) $12.72
Download File 1360 3" X 6" PIERCE PLATE $13.80
Download File 1361 AIR INLET HOSE ASSY-8650 $17.69
Download File 1362 EXHAUST HOSE COUPLING-1-1/2"-BL $9.99
View Image Download File 1370 3-2/3" X 7" PIERCE PLATE $15.44
View Image Download File 1375 4-1/2" x 9" PIERCE PLATE $19.26
Download File 1384 BOOT $16.29
Download File 1384-1 BOOT RETAINING RING $3.27
View Image Download File 1712 HEAD BEARING $25.49
Download File 1803 TOP SHAFT SCREW $0.39
Download File 1807 WASHER $0.39
View Image Download File 1810 BEARING $14.66
View Image Download File 1820 WOODRUFF KEY $0.86
View Image Download File 1821-C BEARING PLATE W/ WARE PLATE $18.11
View Image Download File 1821-CW BEARING PLATE WASHER $2.20
Download File 1822 ROTOR RETAINER CLIP $1.03
Download File 1830S TRIGGER SCREW SET $1.72
Download File 1846 CRANK SCREW & WASHER $0.86
Download File 1847 SPRING WASHER $0.70
